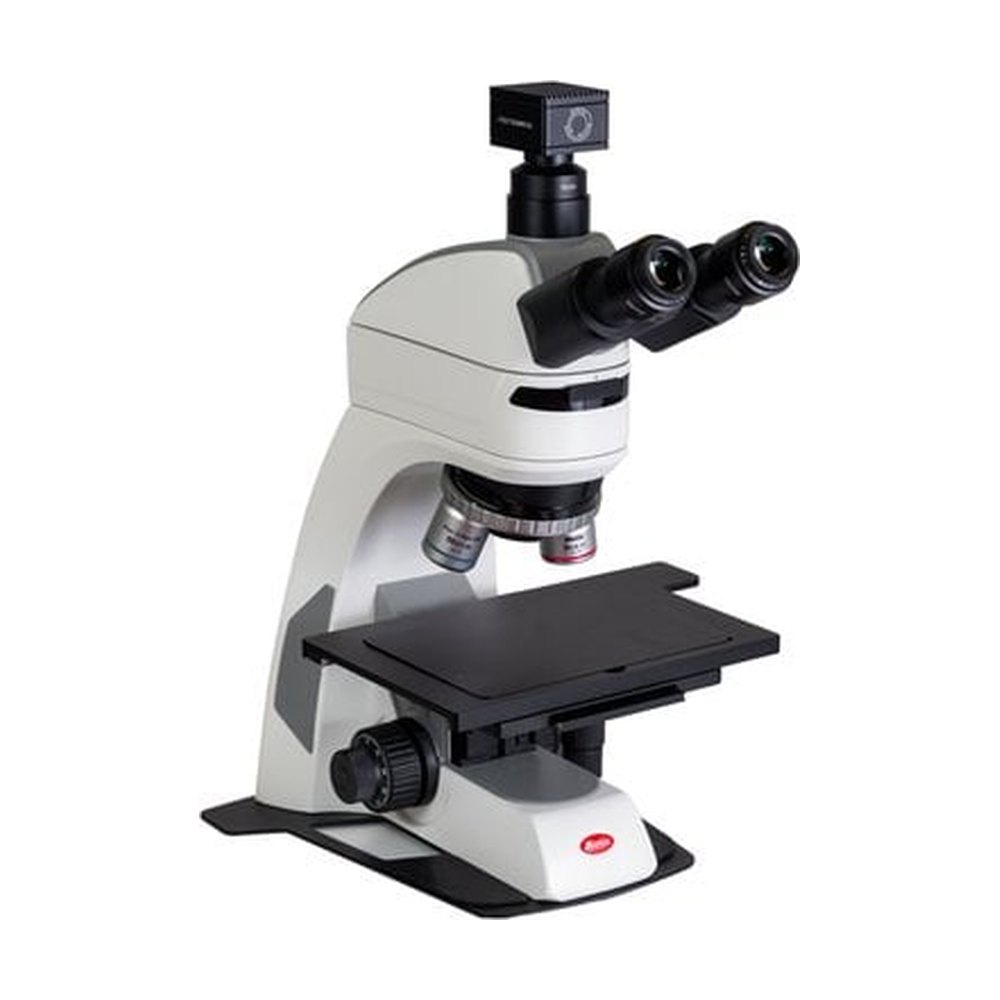

Motic™ Panthera TEC Material Upright Trinocular Microscope

Ref : 17148598
4345.00€ - 6640.00€

This Panthera TEC offers a high value for the inspection of semiconductors and various other materials, especially in industrial quality control and technical education. Brightfield, Darkfield and Cross-Polarization contrast are combined with a new, unique-to-Motic™ segmental illumination that all contribute to the versatility of this model.

Type de tête :
Trinocular
Type d’éclairage :
LED
Modèle :
BF/RL/TL
Types d’objectifs :
LD Plan BD
Champ de vision :
22 mm
Couvre-nez :
5-fold
Brand
Motic™

The Panthera TEC is clearly focused on material sciences, filling the last gap in the Panthera family. Brightfield, Darkfield and simple Polarization contrast combined with a new segmental illumination allows for an oblique incident illumination, perfect for detection of scratches or other defects on flat and reflecting surfaces without a need to move the sample.

  • LD Plan BD objectives with a high imaging performance, mounted on 5-fold encoded nosepiece
  • Light intensity for each objective position is automatically memorized and will be repeated once the objective is swung in again
  • Compact Epi illuminator carries a slot for polarizer and analyzer, ready for Polarization contrast and reducing internal reflections
  • Illuminator also includes controls for varying incident light in terms of mode (BF or DF) and illumination angle
  • Extended Field of View offers 21% more visual area in comparison to basic 20 mm FOV system
  • Beam split (25° viewing angle) is fixed by 50/50 (vis/photo)
  • Incident illumination is performed by a 3W LED of selectable color temperature
  • Incident/transmitted stand type for compound materials additionally carries transmitted LED illumination system with 39 LEDs mounted in an LED condenser (here, a stage with glass insert will be applied)

Type de tête : Trinocular

Type d’éclairage : LED

Modèle : BF/RL/TL

Types d’objectifs : LD Plan BD

Champ de vision : 22 mm

Couvre-nez : 5-fold

Stage Size : 152.4 x 101.6 mm (6 x 4 in.)
