Fisherbrand™ CRF-1 Controlled Rate Freezer | B-LABO France
Fisherbrand™ CRF-1 Controlled Rate Freezer
Réf. : BL-EQ-035906Réf. fabricant : 17275146 Gray
Prix sur devis
Tarif personnalisé selon la configuration et la quantité.
This liquid nitrogen-free and cryogen-free controlled rate freezer is ideal for research into the cryopreservation of a wide range of materials, including embryos, stem cells, mammalian cells, spermatozoa, antibodies, tissue sections and rodent organs.
Unlike conventional liquid nitrogen-based controlled rate cooling equipment, the CRF-1 poses no contamination risk and can be used in cleanrooms and barrier facilities. The CRF1 fits neatly and quietly on a bench-top and its performance in terms of cell viability after freezing is comparable or better than standard liquid nitrogen freezers. As alcohol is not used, there is also no potential fire risk. The CRF-1 will cool down to -100 ̊C with straws.

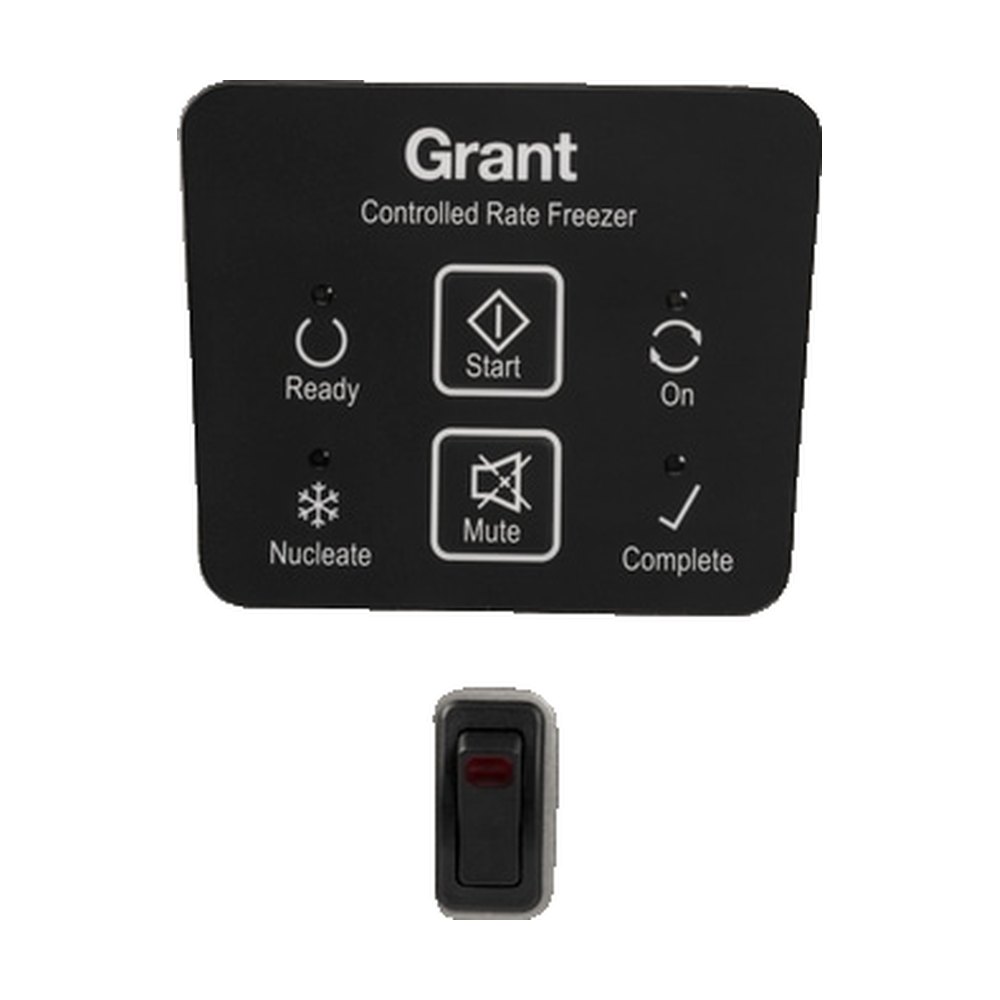

The cooling rate of the CRF-1 is precisely controlled, ensuring accuracy and reproducibility throughout the freezing profile, especially for the important nucleation or seeding phase. This ensures optimal recovery of cells upon thawing. Operation is simple and can be carried out with or without a PC; data can be logged via PC software and cooling profiles are directly displayed. Different cooling profiles are available from a drop down menu and customised profiles can be written.
The CRF-1 is highly versatile and can be used for the cryopreservation research of a wide range of samples in cryovials, straws, bags, microplates and Matrix-96-well block plates in the following areas:
Key benefits and features:
Caractéristiques principales
Transgenic embryos research
Stem cell research
Clinical and research samples, e.g. lymphocytes and tissue cell lines in conventional cryovials
Various mammalian cells including cardiomyocytes, adipose, liver and muscle
Cord blood derived stem cells
Adherent cells and stem cells in microplates
Cell suspensions in numbered/barcoded arrays
Robotic integration – the CRF-1 has also successfully been integrated into robotic systems
Suitable for applications in veterinarian IVF
Accurate and reproducible control of cooling rates and sample temperatures
Easy to use and samples can be nucleated/seeded in-situ
Linear and non-linear cooling profiles
Low running costs: estimated at 1% of liquid nitrogen controlled rate freezing
Temperature remains at -100 ̊C at the end of cycle for straw applications until freezer is switched off
Uninterruptible Power Supply (UPS): complete cycle run if power fails (supplied as an optional accessory)
CE marked (laboratory use)
Caractéristiques techniques
Marque
Fisherbrand
Réf. B-LABO
BL-EQ-035906
Réf. fabricant
17275146
Type
Cryogenic Freezer
Gamme de températures
-100°C minimum
Matériau de la cuve
Aluminum
Certifications/Conformité
RoHS, CE, UKCA, RoHS, CE, UKCA
Modèle
Benchtop
Couleur
Gray
Garantie
3 Years
Dégivrage
Automatic
Dimensions (P x l x H) extérieures
264 x 367 x 445 mm
Programmabilité PC
CRF-1 User Software
Ampérage
2.5 A
Type de bouchon
EU, UK, US
Alimentation électrique
100/240 V (Mains Supply), 24 V DC (Unit Supply)
Fréquence
50/60 Hz
Puissance
150 W
Compresseur
CFC-free
Poids (impériale)
21.6 lb.
Poids (métrique)
9.8 kg
Capacité

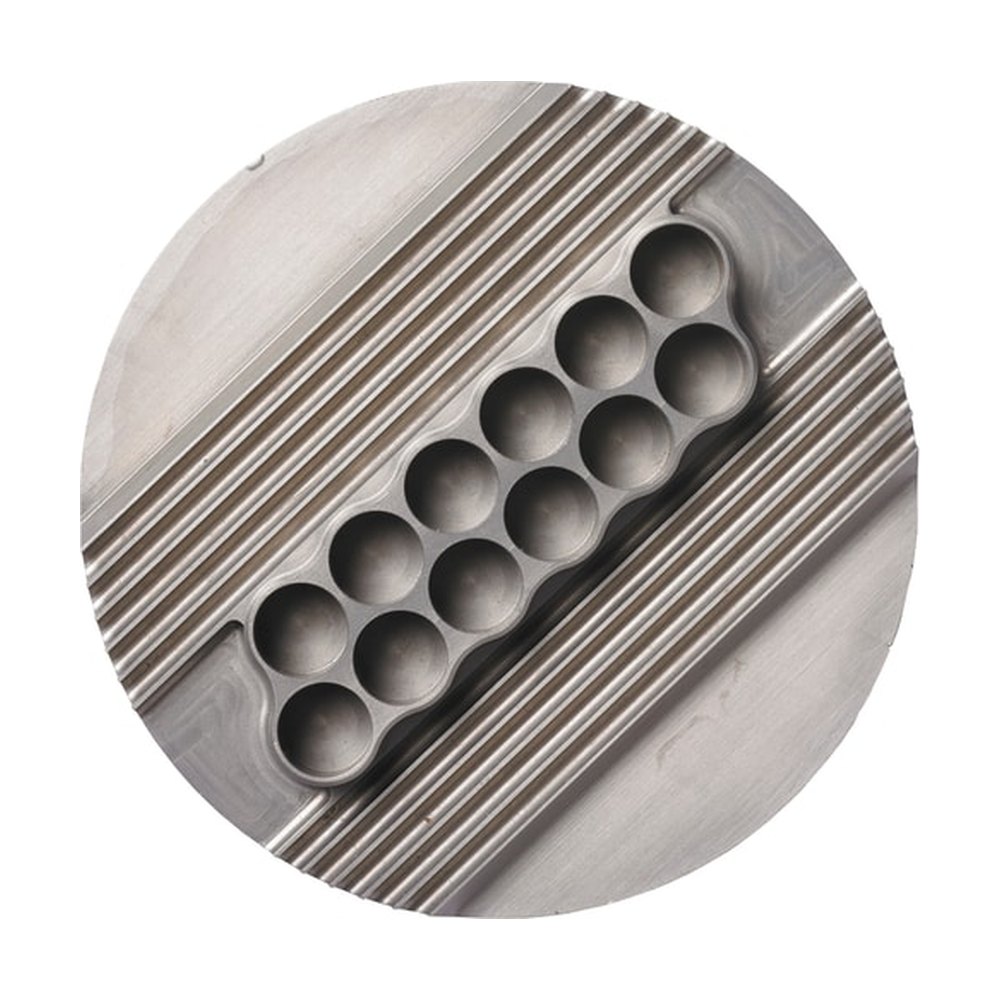

Plate for 10 x 0.5 mL CBS High Security Straws and 12 x 1.8 mL Cryovials (0.5 mL Max. Fill)
Une question, une configuration particulière ? Contactez-nous pour un devis.
