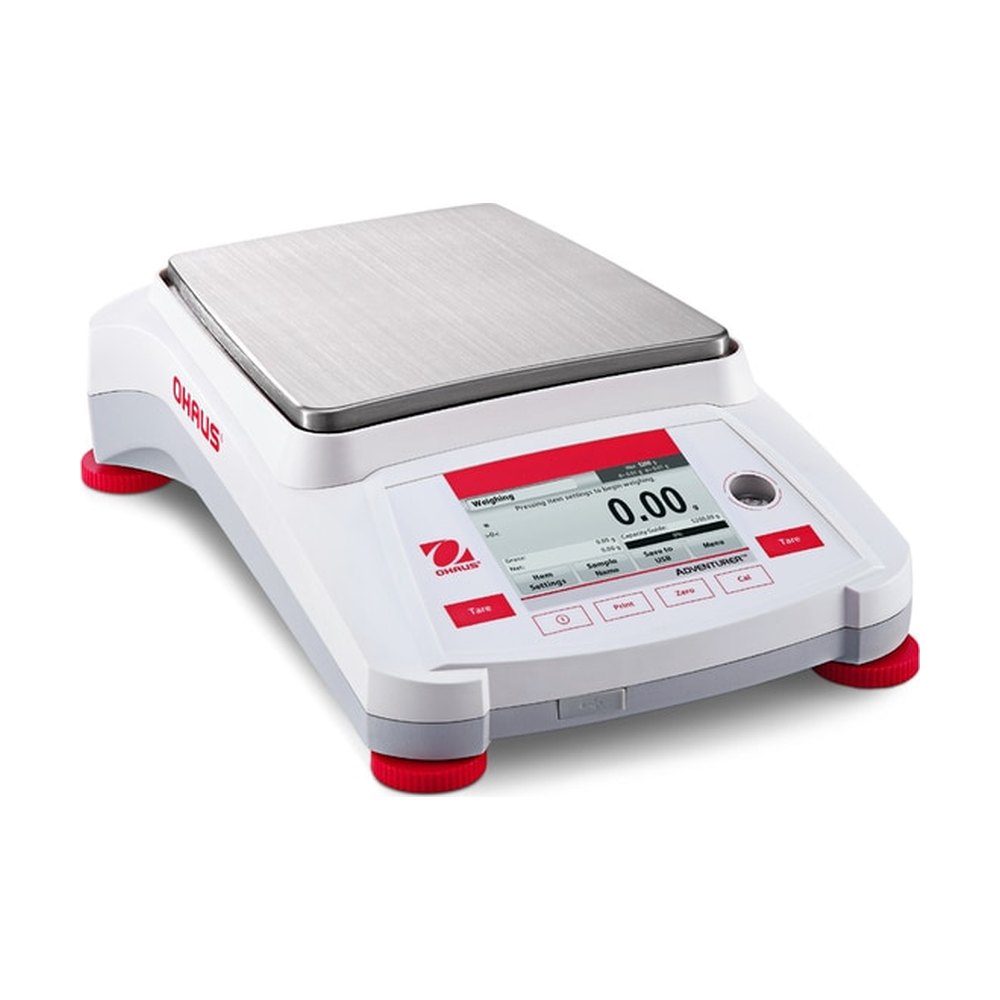

Trouvez le bon équilibre entre des fonctionnalités ingénieuses et des capacités de pesée fonctionnelles et simples. Les balances de précision Ohaus™ Adventurer incorporent toutes les applications nécessaires pour la pesée de routine et les activités de mesure.
Certifications/Conformité
Metrology: OIML R76, EN 45501 (Class I, nmax 320000, Class II, nmax 52000), Product Safety: EN 61010-1, IEC 61010-1, Electromagnetic Compatibility: IEC 61326-1, EN 61326-1 (Emissions Class B, Immunity Industrial Requirements), GLP/GMP Compliant
Type de connexion
RS232 (Included), USB, USB Host
Capacité
6200 g
Type d’affichage
Color Touchscreen
Précision affichage
0.01 g
Marque
Ohaus
Points forts
Intuitive Balance Designed for Routine Weighing
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
Unique Features Include
Adventurer balances feature a color touchscreen, icon-based user interface, and an ergonomic design -making them easy to configure and use.
Features such as specialized weighing modes, multiple connectivity options, and AutoCal™ provide versatility and flexibility for a variety of applications.
Durable construction, large weighing surfaces, a space-saving draftshield design, and full housing in-use cover allow for use in lab, education and industrial environments.
Stability, Accuracy, and Fast Operation Ensure Optimal Weighing Results in Routine Weighing Tasks
Weighing Performance:
Stabilization Time:
Delivers stable and reliable weighing results for routine weighing tasks.
The fast stabilization time of the Adventurer improves productivity in the laboratory.
AutoCal™ — Selected models feature the OHAUS automatic internal calibration system that performs routine maintenance by calibrating the balance daily.
External Calibration — Traditional calibration in which the operator manually calibrates the balance with their choice of calibration weight value to ensure accuracy available on every model.
Color Touchscreen Offers Easy and Fast Operation of Adventurer Applications
Operate and access nine Adventurer application modes and abundant features that eliminate the need to do several manual calculations through the modern color touchscreen.
Operators can wear laboratory gloves while utilizing the touchscreen, eliminating the inconvenience and hazards associated with constantly putting on and removing gloves.
In addition to the touchscreen, Adventurer also has six mechanical keys that provide tactile feedback and allow the operator to perform repetitive operations such as tare, zero, calibration, and print.
Equipped with the Connectivity and Functional Features Required in Laboratories
Dual USB Ports:
Label Printing Function:
A front USB host port is easily accessible and makes it simple to load data from the balance on to a flash drive without having to reach around to the back or move the balance.
A second USB device is located at the rear of the balance that can be used to connect the balance to a PC.
The connectivity options help meet traceability requirements in traditional installations.
Easy to link with Zebra printer and have one built-in label printing template.
The cloning feature allows you to save user and application settings to a USB flash drive which can be easily used to configure additional Adventurer balances.
When using the minimum weight feature, the display clearly indicates that your current sample weight is below your defined minimum limit. Simply increase your sample weight to assure that your results are up to your standard.
Caractéristiques techniques
Marque
Ohaus
Réf. B-LABO
BL-EQ-000950
Réf. fabricant
17911302
Certifications/Conformité
Metrology: OIML R76, EN 45501 (Class I, nmax 320000, Class II, nmax 52000), Product Safety: EN 61010-1, IEC 61010-1, Electromagnetic Compatibility: IEC 61326-1, EN 61326-1 (Emissions Class B, Immunity Industrial Requirements), GLP/GMP Compliant
Type de connexion
RS232 (Included), USB, USB Host
Capacité
6200 g
Type d’affichage
Color Touchscreen
Précision affichage
0.01 g
À utiliser avec (application)
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
Comprend
In-use cover
Linéarité
0.02 g
Matériau
Stainless Steel
Poids min. de l’échantillon
16.0 g
Modèle
AX6202/E
Forme du bac
Rectangular
Reproductibilité
0.01 g
Temps de stabilisation
1.5 sec.
Type
Precision Balance
Dimensions (L x l x H)
354 x 230 x 340 mm
Longueur (impériale)
13.9 in.
Longueur (métrique)
354.0 mm
Longueur (métrique) du bac
195.0 mm
Largeur (impériale)
9.1 in.
Largeur (impériale) du bac
6.9 in.
Largeur (métrique)
230.0 mm
Largeur (métrique) du bac
175.0 mm
Hauteur (impériale)
3.9 in.
Hauteur (métrique)
100.0 mm
Poids (impériale)
10.1 lb.
Poids (métrique)
4.6 kg
Alimentation électrique
AC Adapter Input: 100/240 VAC, 0.3 A, 50-60 Hz, AC Adapter Output: 12 VDC 0.84 A
Ampérage
AC Adapter Input: 0.3 A, AC Adapter Output: 0.84 A
Legal for Trade
No
Étalonnage
External
Une question, une configuration particulière ? Contactez-nous pour un devis.
