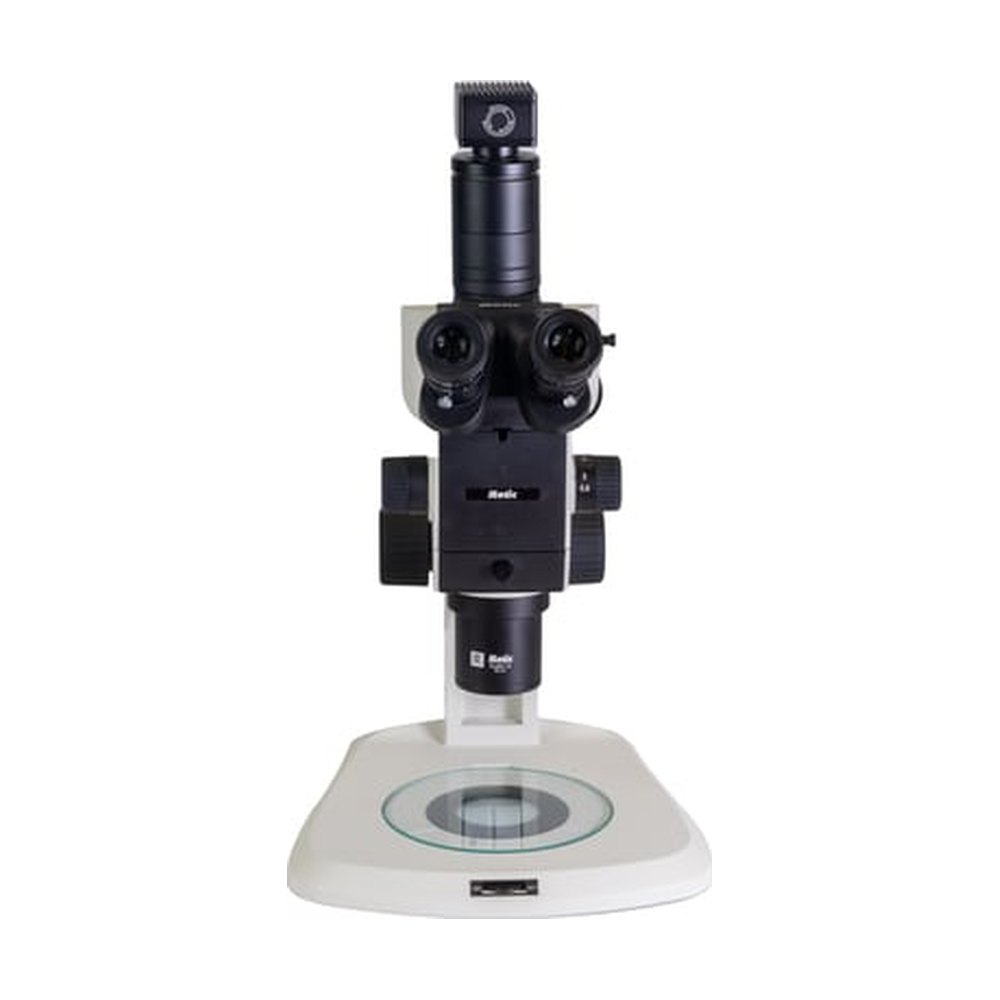

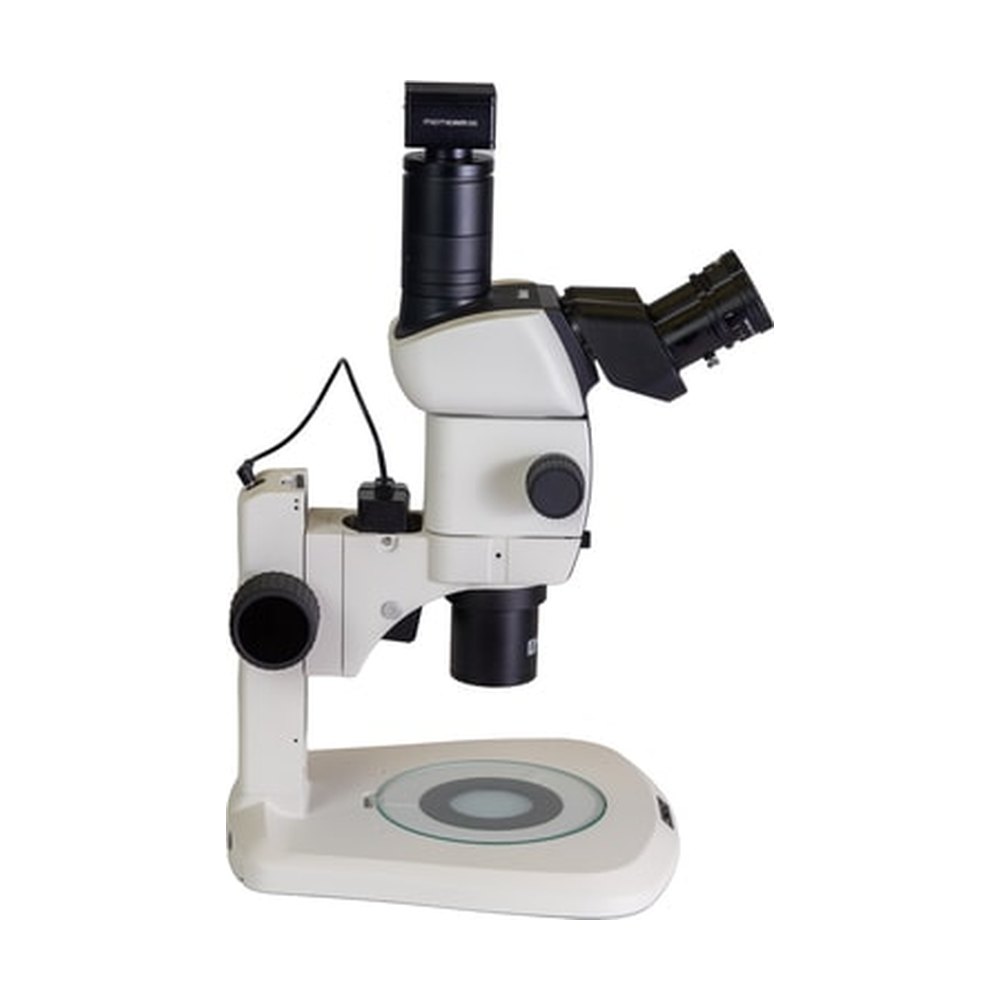

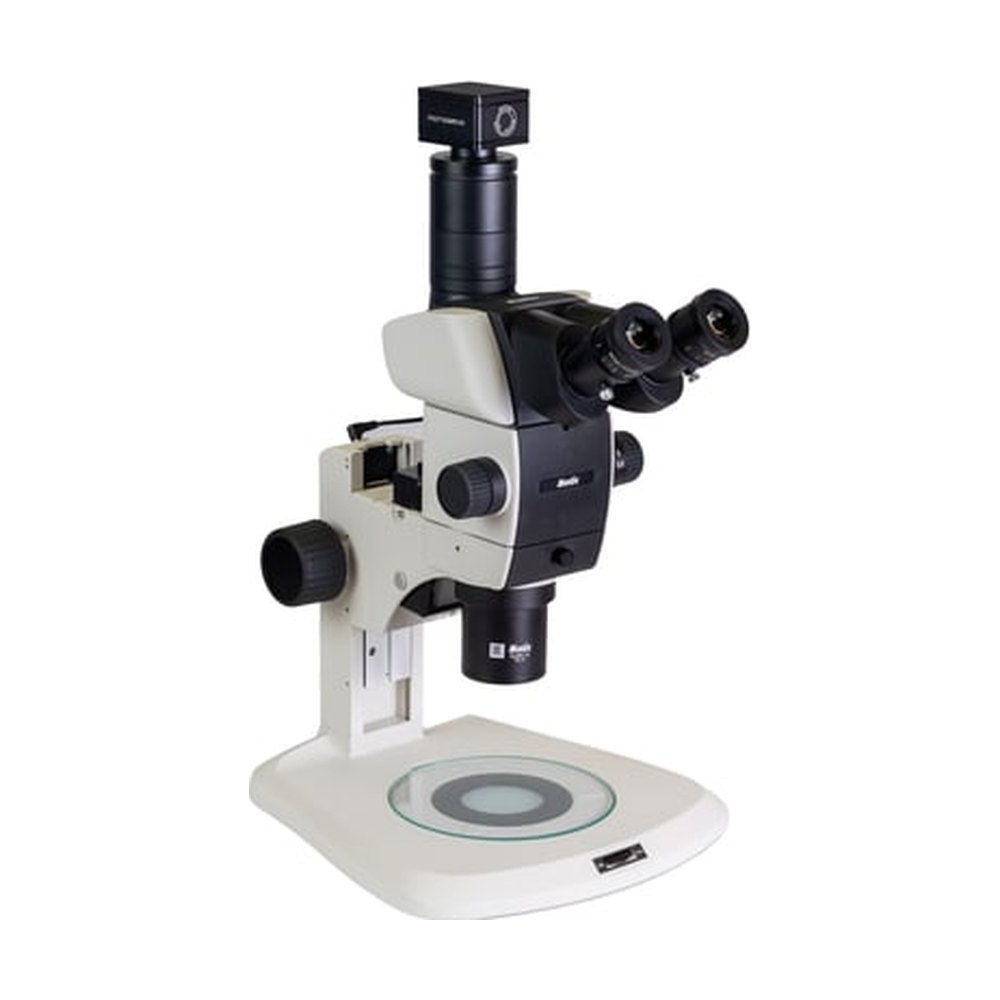

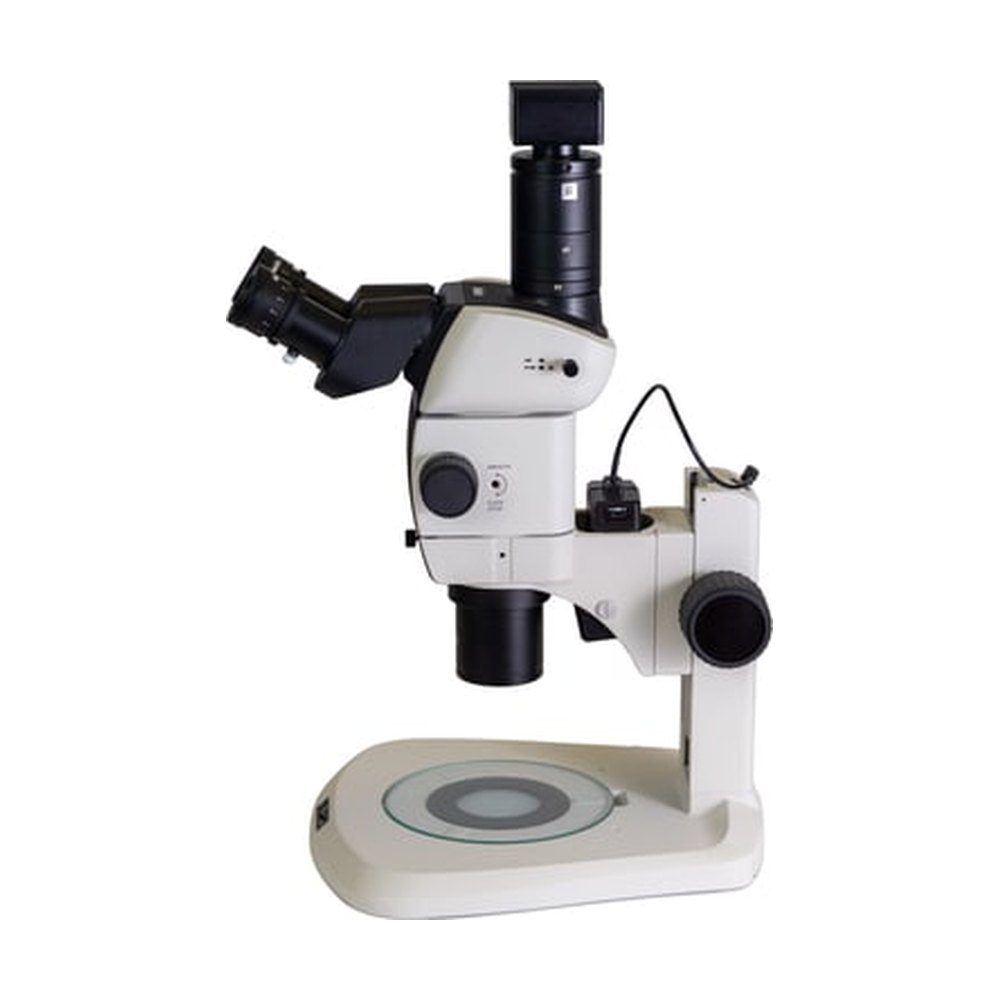

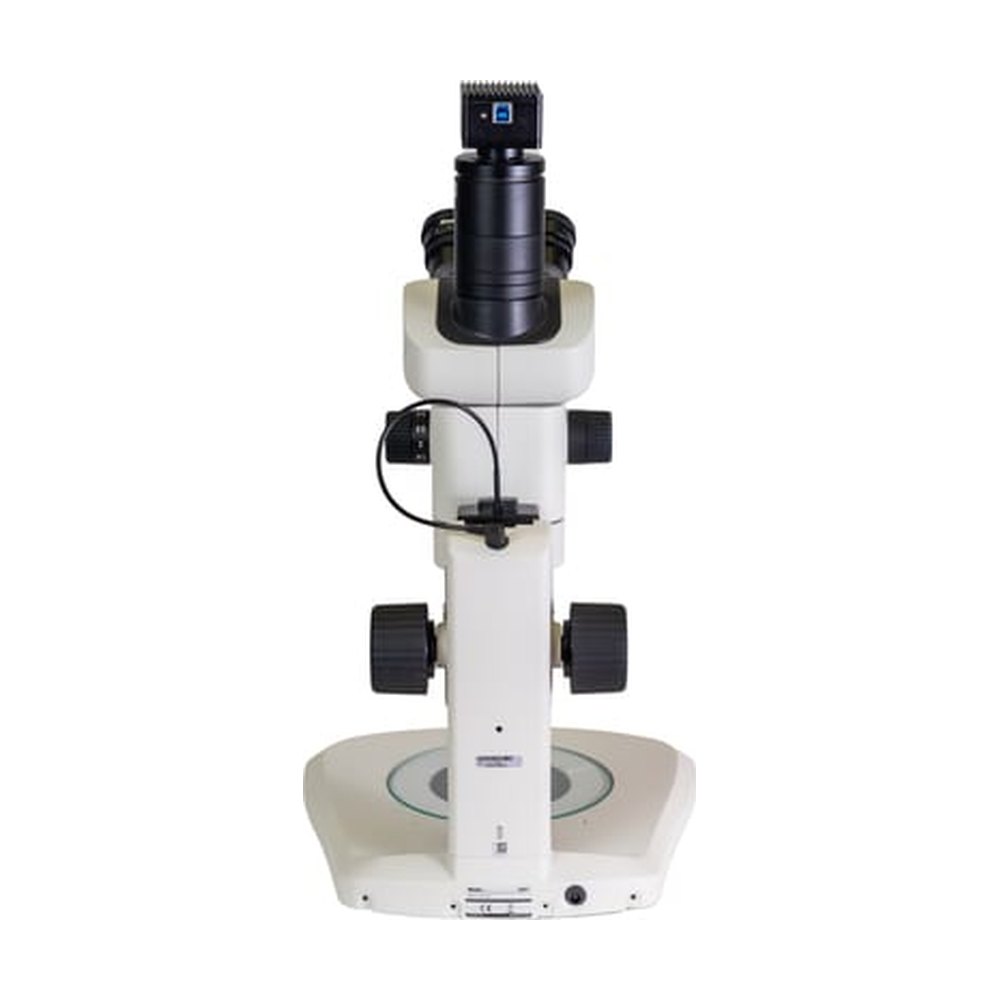

The SM7 is a modular CMO stereo microscope for use in biomedicine and industrial advanced research work. This microscope currently provides a 112x magnification. It can be used on a boom stand as well for imaging large parts on a table.
Comprend
Microscope with LED Stand
Type de conception
Galilean
Types d’objectifs
Plan Apochromatic 0.8X to 5.6X (10-step)
Dimensions (L x l x H)
367 x 290 x 372 mm
Type de tête
Trinocular
Marque
Motic
The SM7 features an optical system with high resolution, true color reproduction, and low distortion.
Caractéristiques principales
Advanced ergonomic design features have been carefully implemented to maximize efficient usage and minimize operator fatigue
Ideal positioning and angles of each module, compact size, and high-quality provide a user-friendly environment for any task
Variety of objective lenses and eyepieces allows the user to tailor the SM7 to their specific purpose or task
Customized stand and digital application guarantee the best resolution no matter the environment
Galilean Optical Zoom System, denoting an Infinity Optical System, allows for high flexibility
Optical setup can be varied by easily exchanging eyepieces and/or objectives (for best possible mage results, Plan-Apochromatic objective 1X (WD 81 mm) is available)
Standard eyepieces 10X/22 offer diopter adjustment range of ±5, allowing to insert reticles for visual measurements
8x to 56x zoom range provided makes execution of any task much easier
More comfortable, longer working distance
Live color reproduction and high-resolution power minimize distortion and aberration, offering a clear image on a wide range of samples
Observation tube is adaptable to any situation: trino head is suitable for video port digital imaging applications (60° inclination tube is also available to meet special use and custom needs)
Careful polyurethane material selection in zoom knobs and focus dials assures comfort during any operation
To avoid repetitive zooming changes, a click stop function has been implemented to improve work efficiency
High Eye Point eyepiece design provides comfortable viewing when operating with glasses or low visual acuity
Caractéristiques techniques
Marque
Motic
Réf. B-LABO
BL-EQ-173413
Réf. fabricant
17829661
Comprend
Microscope with LED Stand
Type de conception
Galilean
Types d’objectifs
Plan Apochromatic 0.8X to 5.6X (10-step)
Dimensions (L x l x H)
367 x 290 x 372 mm
Type de tête
Trinocular
Eyepiece
WF 10X/22 mm
Distance d’utilisation
81 mm
